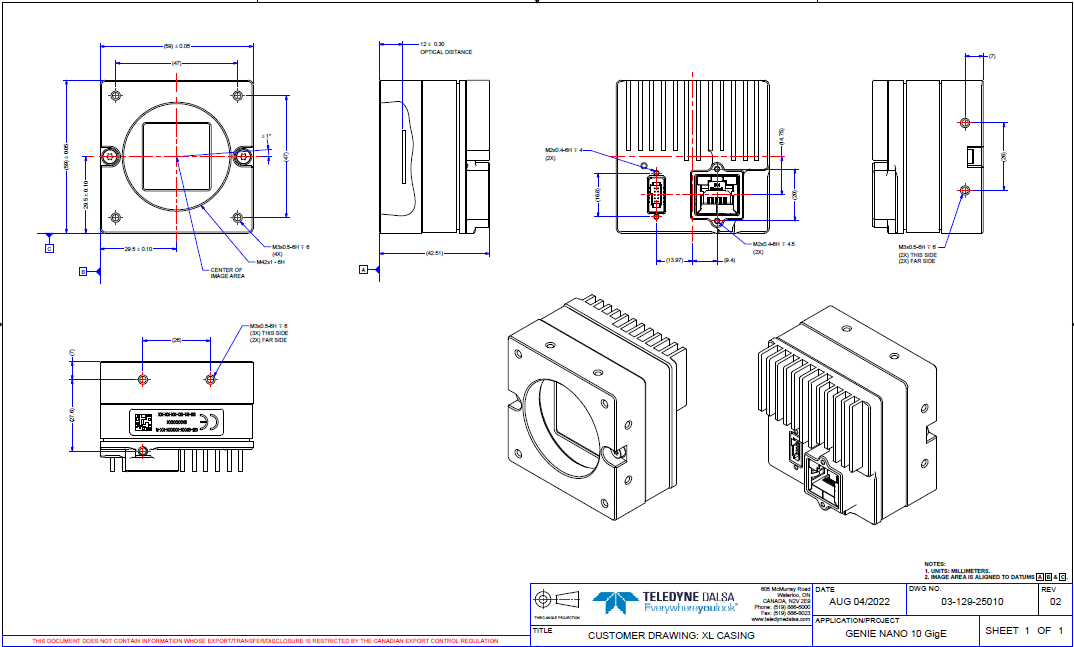

Mechanical Specifications

The camera accepts an M42 mount lens.

Additional Mechanical Notes

• Nano 10G supports a screw lock Ethernet cable as described in Ruggedized RJ45 Ethernet Cables.

• For information on Nano 10G lens requirements see Optical Considerations.

• Each camera side has two mounting holes in identical locations, which provide good grounding capabilities.

• Overall height or width tolerance is ±0.05 mm.
