Ruggedized Cable Accessories

Teledyne DALSA provides optional I/O cable assemblies for Genie Nano-10G. Users wishing to build their I/O cabling by starting from available cable packages should consider these popular assemblies described below. Contact Sales for pricing and delivery.

Users also may order cable assembly quantities directly from Alysium-Tech or Components Express. In such cases use the manufacturer’s part number shown on the cable assembly engineering drawing.

Cable Manufacturers Contact Information

For Information contact:
(see their web site for worldwide offices)

Alysium-Tech
101 Montgomery Street, Suite 2050
San Francisco, CA 94104
Phone: 415 248 7807
Fax: 415 248 7800

https://www.alysium.com/

For Information contact:
(see their web site for worldwide offices)

Components Express, Inc. (CEI)
10330 Argonne Woods Drive, Suite 100
Woodridge, IL 60517-4995
Phone: 630-257-0605 / 800.578.6695 (outside Illinois)
Fax: 630-257-0603

https://www.componentsexpress.com/

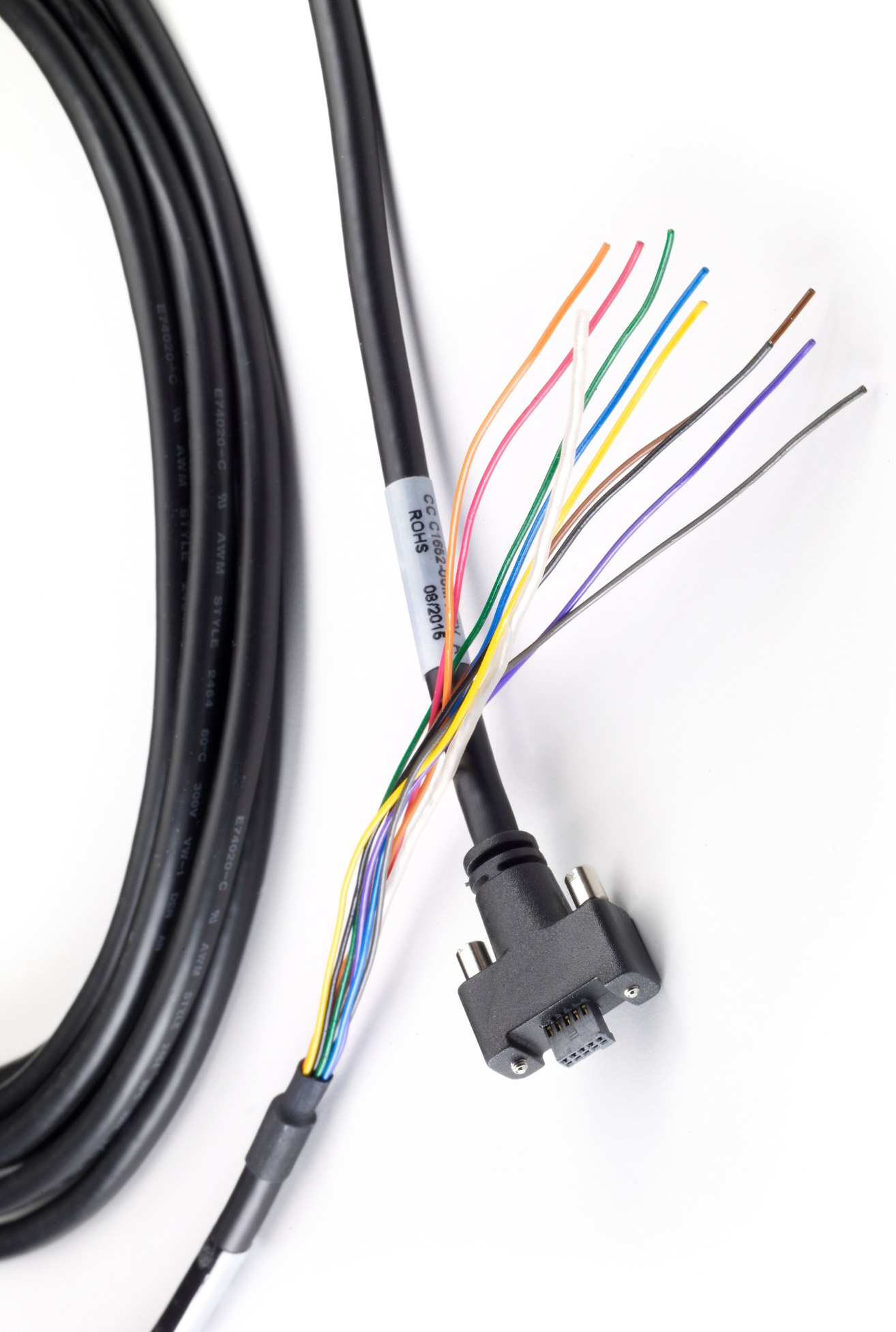

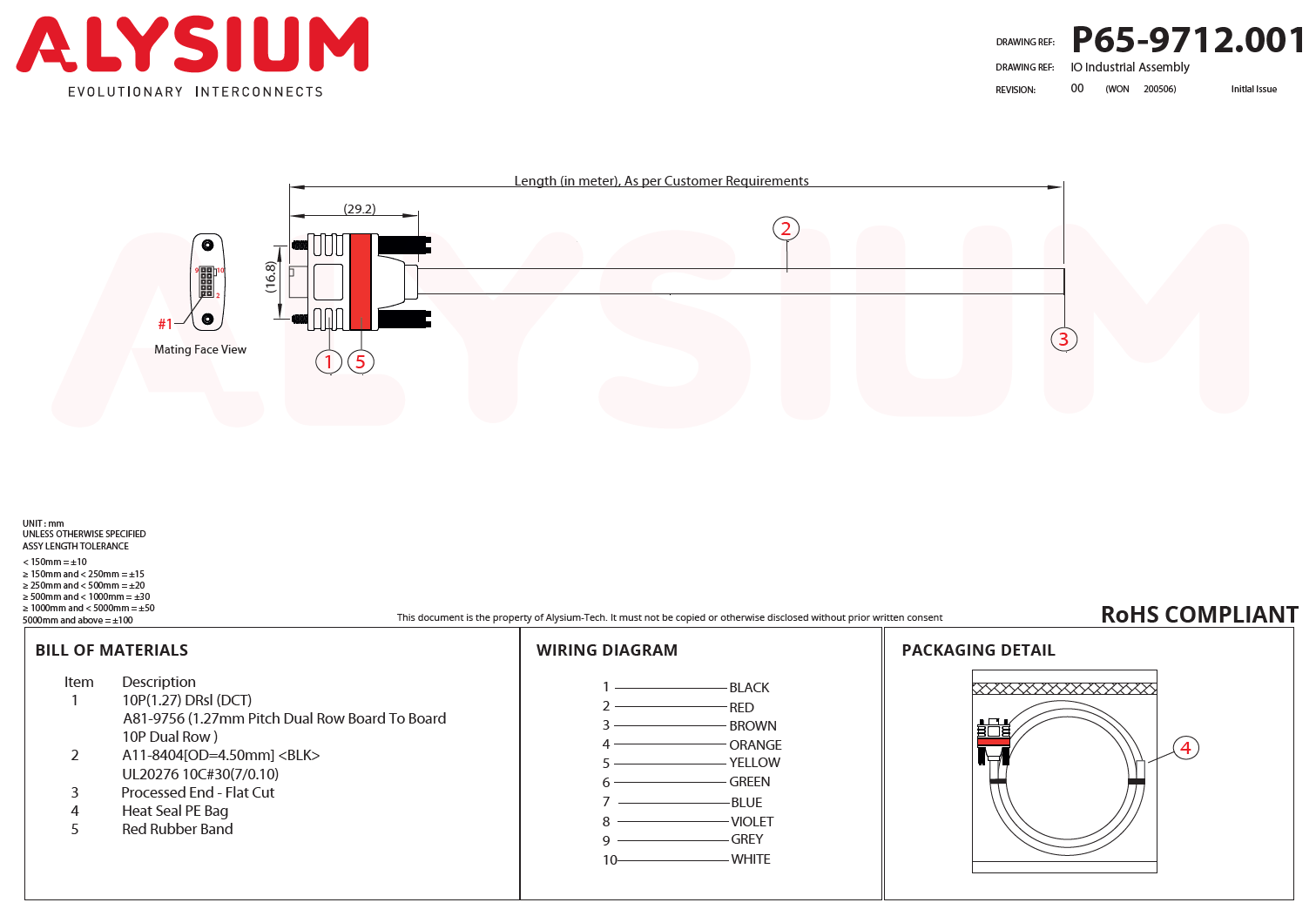

Cable Assembly G5-AIOC-BLUNT2M

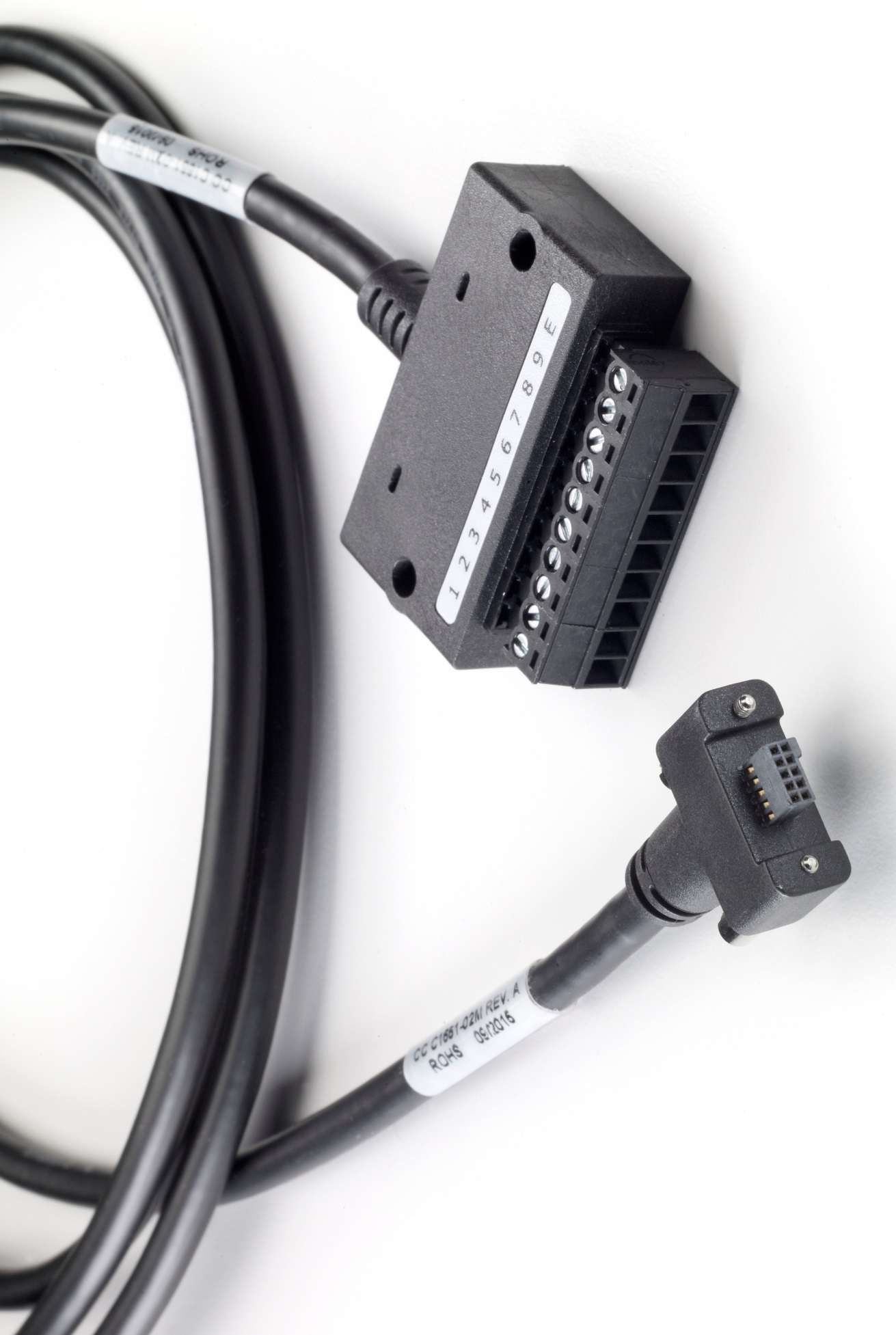

Cable Assembly G3-AIOC-BRKOUT2M

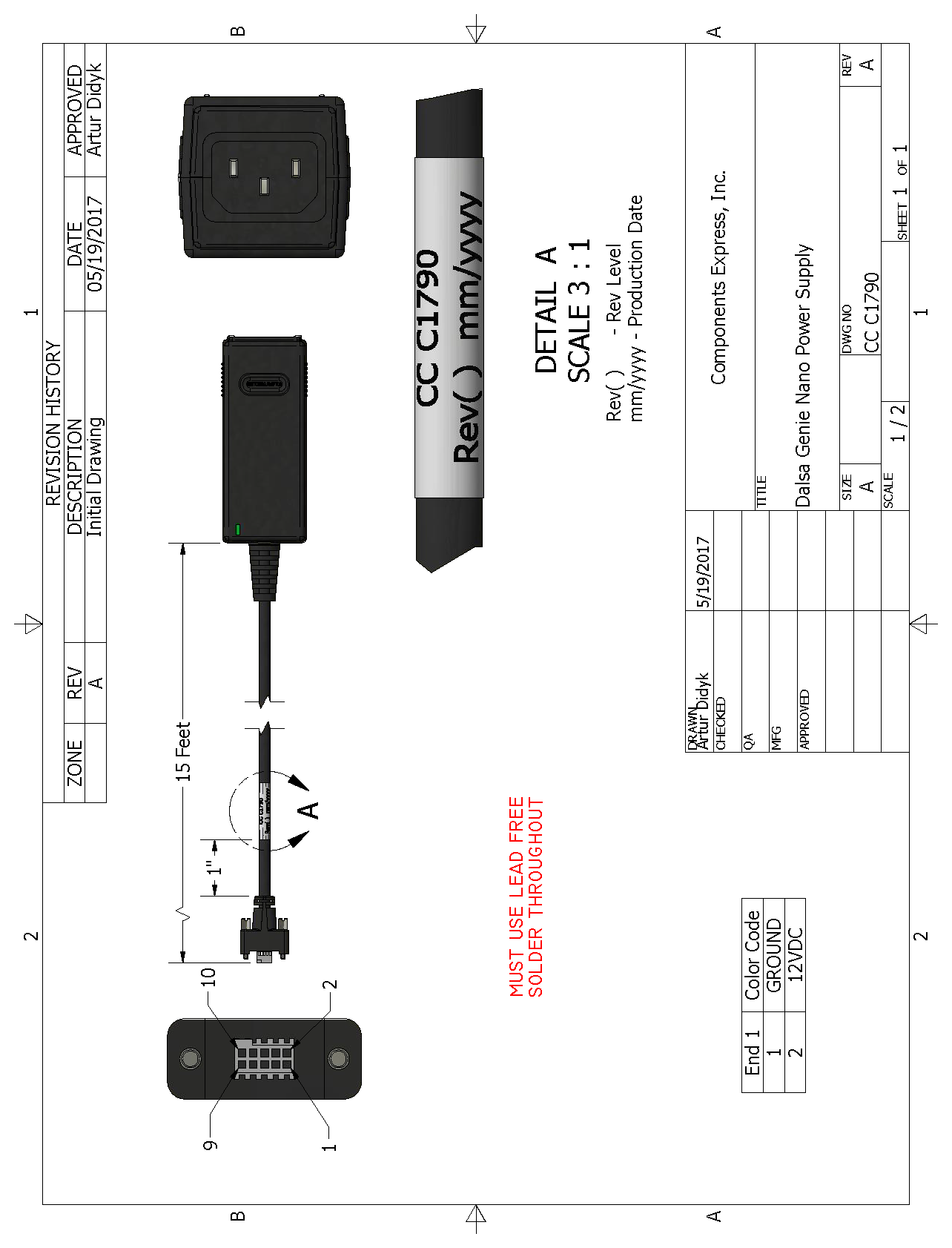

Nano-10G Generic Power Supply with no I/O

Components Express Right-Angle Cable Assemblies

These cable assemblies can be acquired directly from our partner Components Express. In such cases use the manufacturer’s part number shown on the cable assembly engineering drawing.

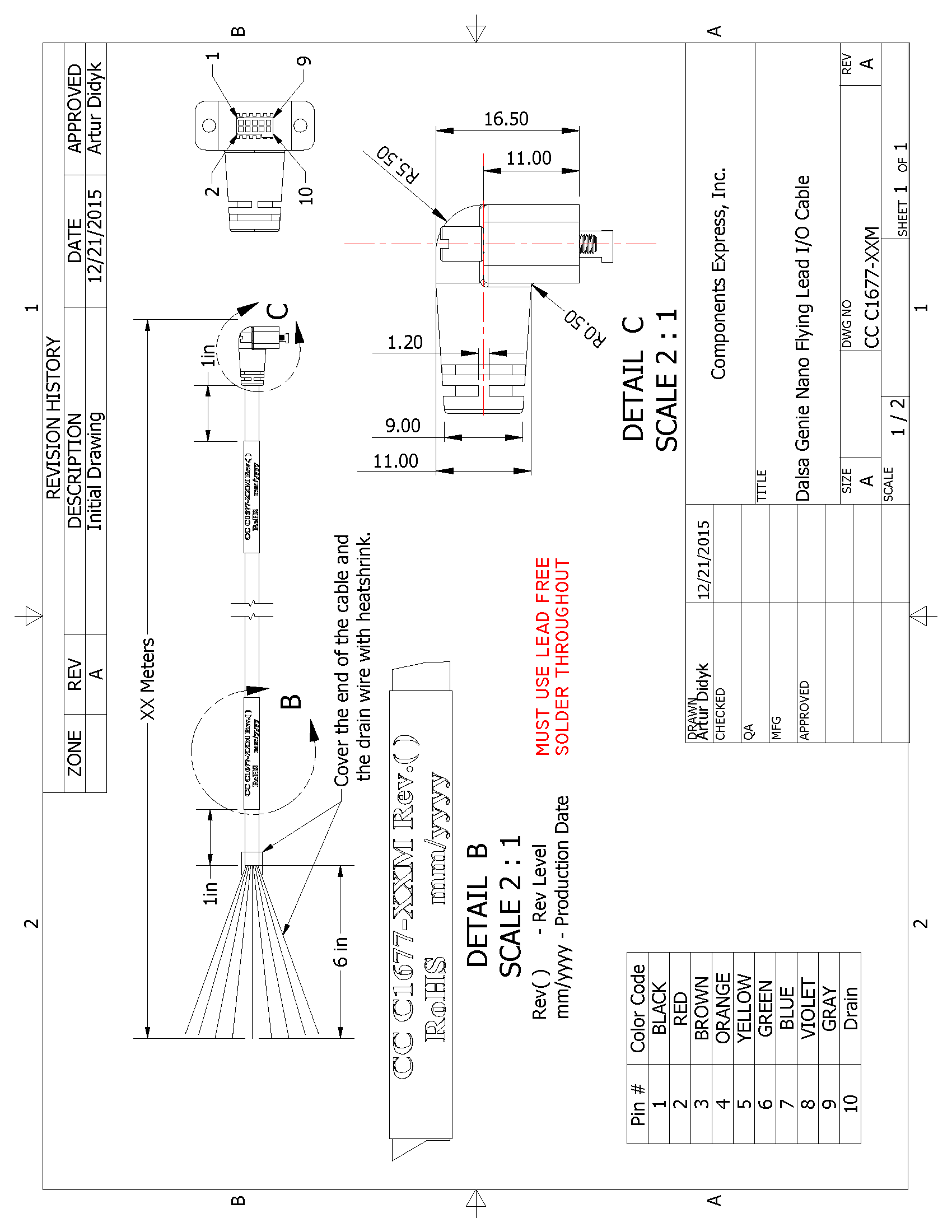

Cable Assembly: Right-Angle I/O Bunt End

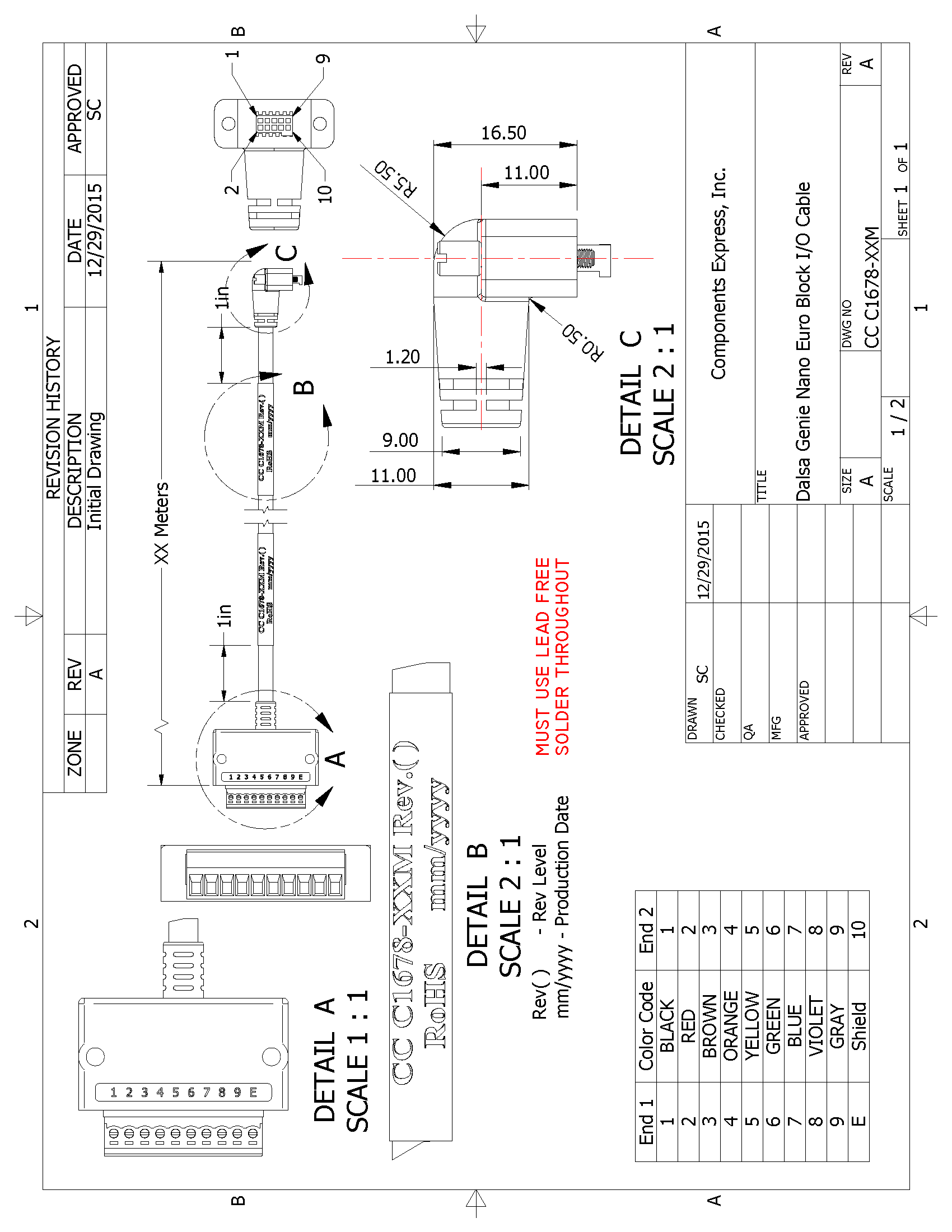

Cable Assembly: Right-Angle I/O to Euro Block

Ruggedized RJ45 Ethernet Cables

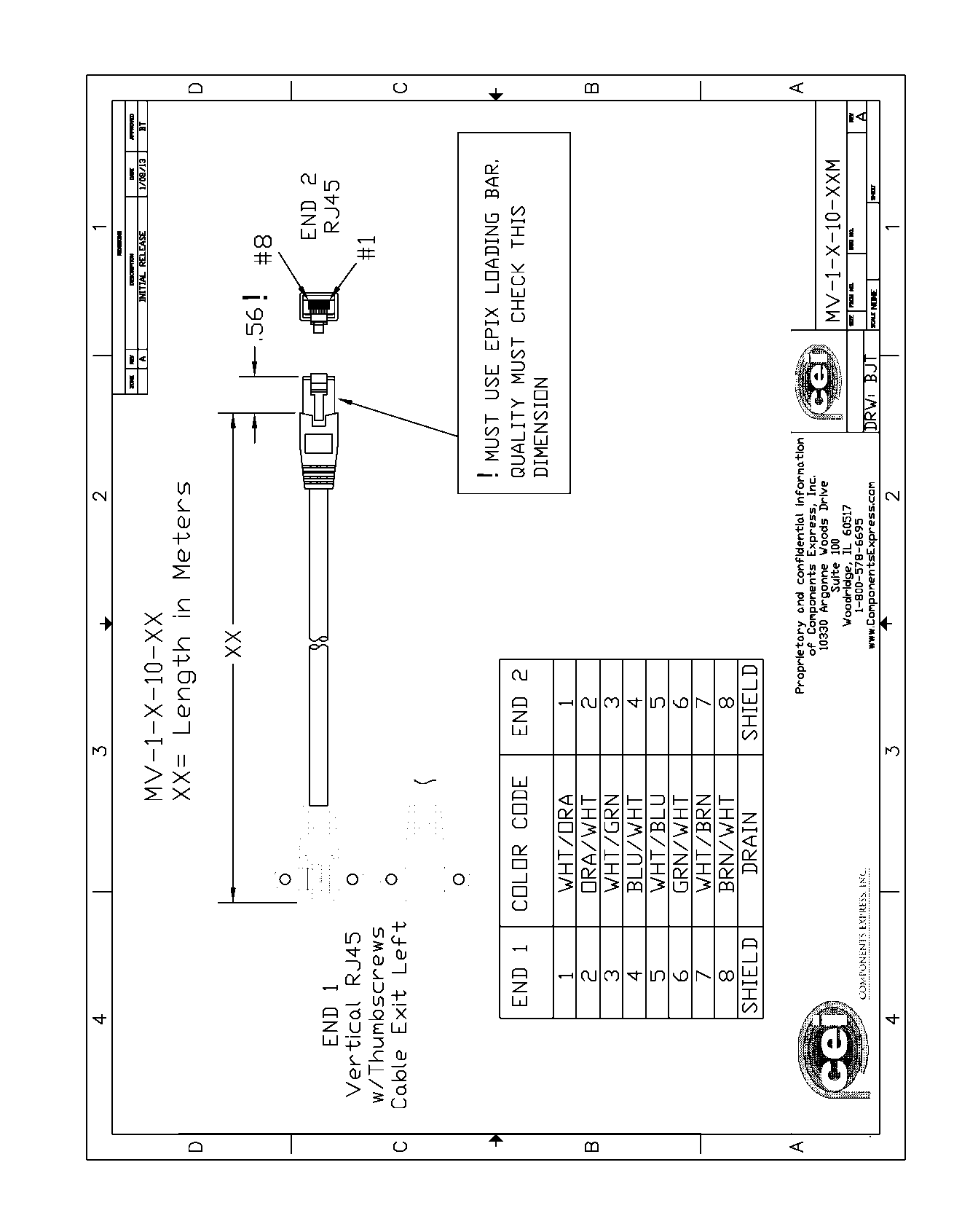

Components Express Inc. has available industrial RJ45 CAT6 cables that on one end have a molded shroud assembly with top/bottom thumbscrews, while the other end is a standard RJ45 (one example shown below). These cables are recommended when Nano-10G is installed in a high vibration environment. All Nano-10G versions support this secure Ethernet cable. Review their catalog for all available versions of vertical thumbscrew RJ45 cable sets.



All cables made in U.S.A. – all cables RoHS compliant.

CAT6 certified
(tested for near end / far end crosstalk and return loss).

IGE-3M (3meters)
IGE-10M (10meters)
IGE-25M (25meters)
IGE-50M (50meters)
IGE-100M (100meters)

Cable Assembly: Right-Angle Ethernet

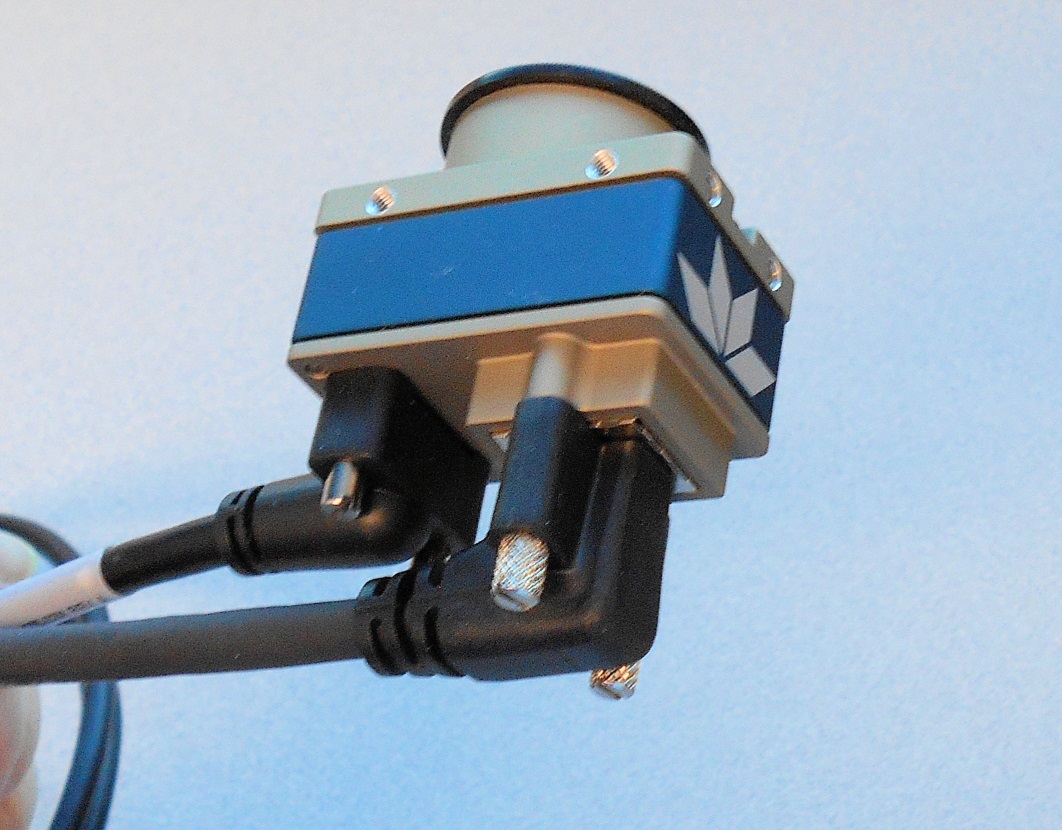

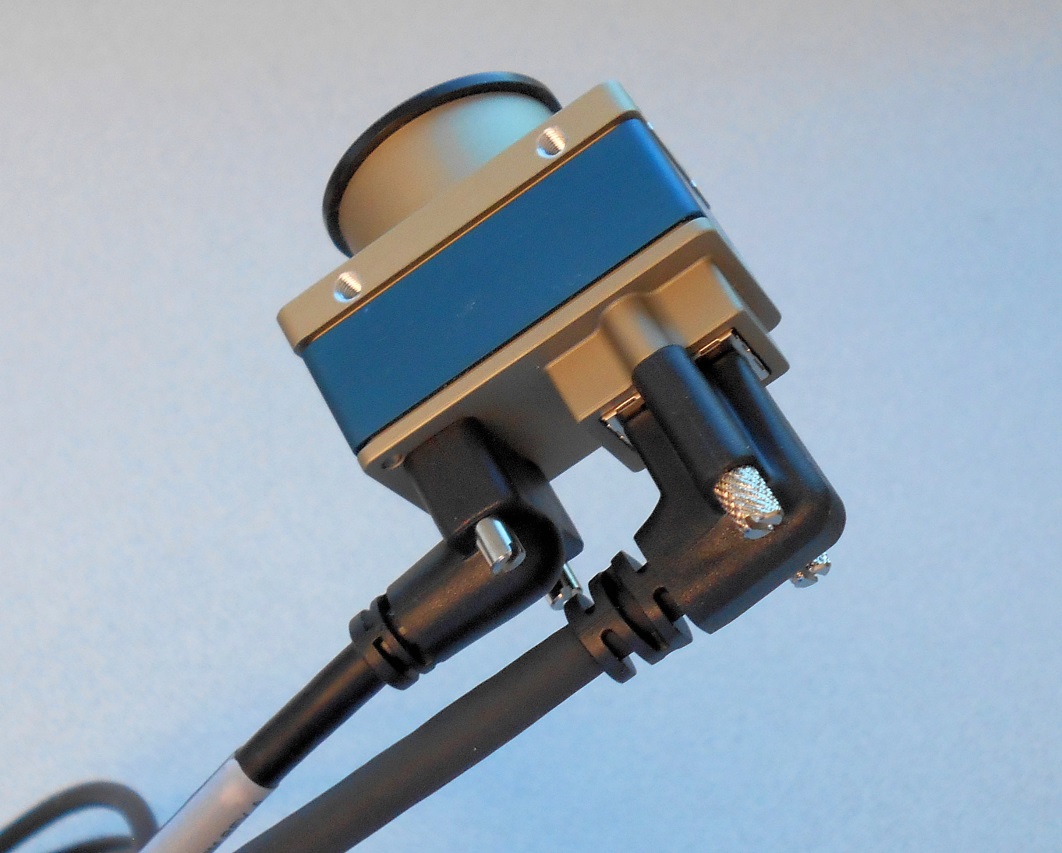

Right-Angle Cable-Set (Mounted)

Photos show the Components Express Right-Angle combo package (CC C1679-xxM) consisting of a Right-Angle Ethernet cable, Right-Angle I/O to Euro Block, and power supply (not shown).

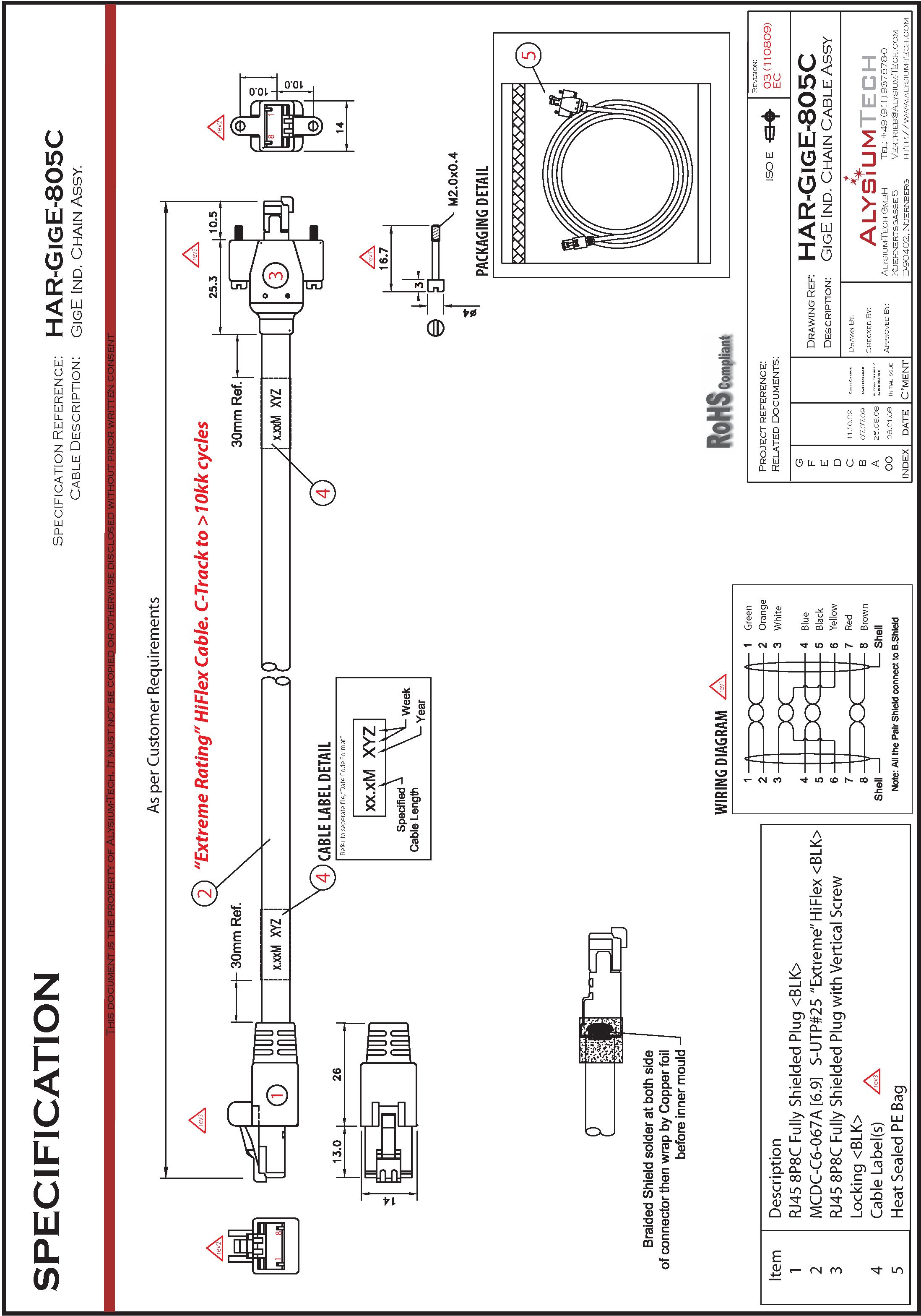

Alysium-Tech “Extreme Rating” HiFlex Ethernet Cable

Alysium-Tech has a cable series for constant movement applications such as cameras mounted on robotic arms or other locations where reliable interconnects are required. Contact Alysium-Tech directly for pricing.

IP67 Enclosure Products

Components Express has designed enclosures that provide IP67 protection for cameras.

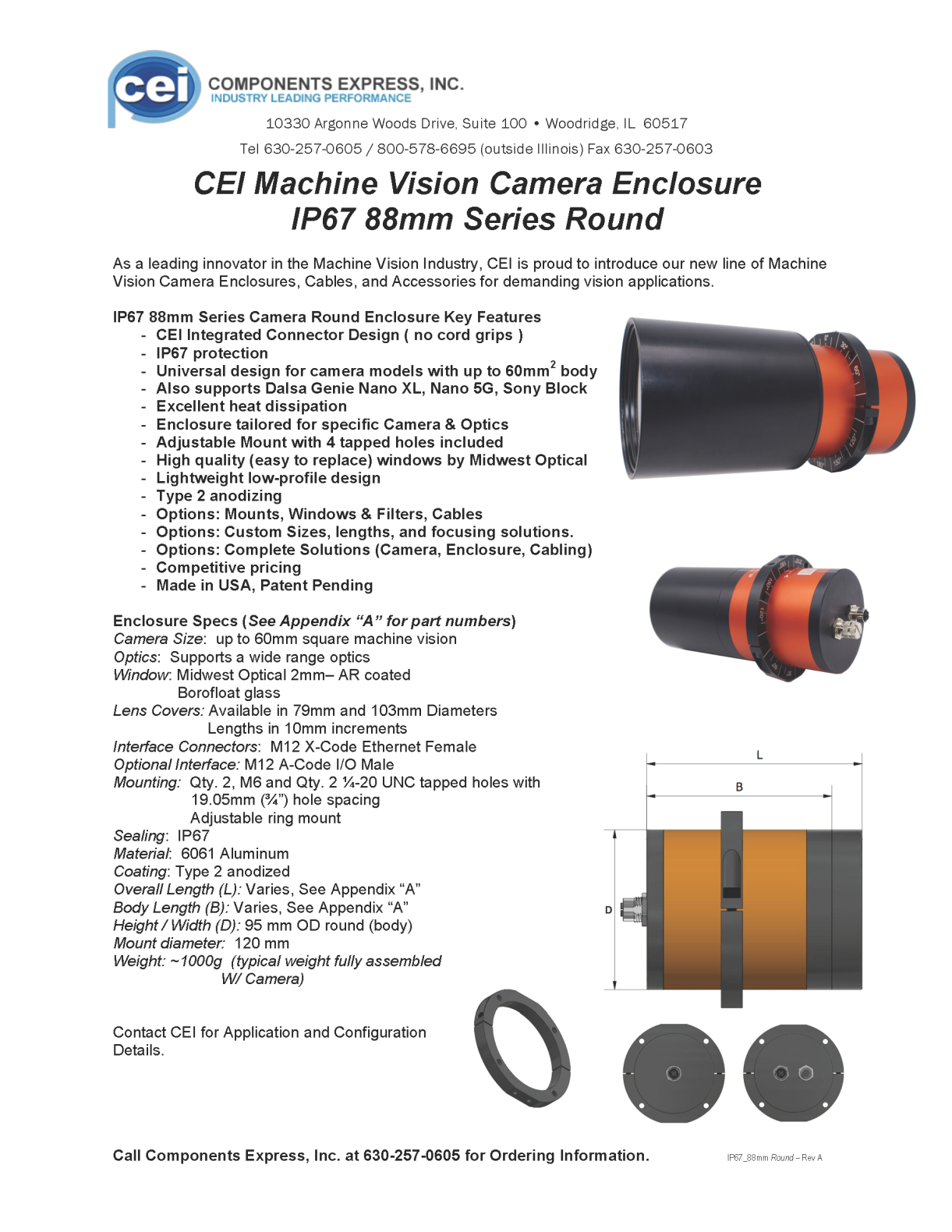

Shown below is page one of the Component Express data sheet for an enclosure compatible with the Nano-10G. Contact them directly for complete information.
