Nano10G I/O Mating Connector Specifications
|
MFG |
Part # |
Description |
Data Sheet |
|---|---|---|---|
|
Samtec |
ISDF-05-D ISDF-05-D-M (see image below) |
Discrete Connector (see example below) |
https://www.samtec.com/products/isdf |
|
Samtec |
SFSD-05-[WG]-G-[AL]-DR-[E2O] WG : Wire Gauge AL : Assembled Length E2O : End 2 Option |
Discrete Cable Assembly (see example below) |
https://www.samtec.com/products/sfsd |
|
ISDF-05-D-M Connector Availability On-Line |
|||
|
North-America (specific country can be selected) |
http://www.newark.com/samtec/isdf-05-d-m/connector-housing-receptacle-10/dp/06R6184 |
||
|
Europe (specific country can be selected) |
http://uk.farnell.com/samtec/isdf-05-d-m/receptacle-1-27mm-crimp-10way/dp/2308547?ost=ISDF-05-D-M |
||
|
Asia-Pacific (specific country can be selected) |
http://sg.element14.com/samtec/isdf-05-d-m/receptacle-1-27mm-crimp-10way/dp/2308547?ost=ISDF-05-D-M |
||
|
Important: Samtec ISDF-05-D-S is not compatible with Genie Nano-10G |
|||

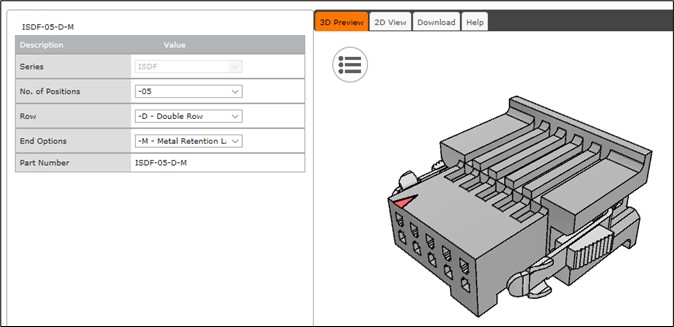

Samtec ISDF-05-D-M mating connector for customer built cables w/retention clips “.050” Tiger Eye™ Discrete Wire Socket Housing”

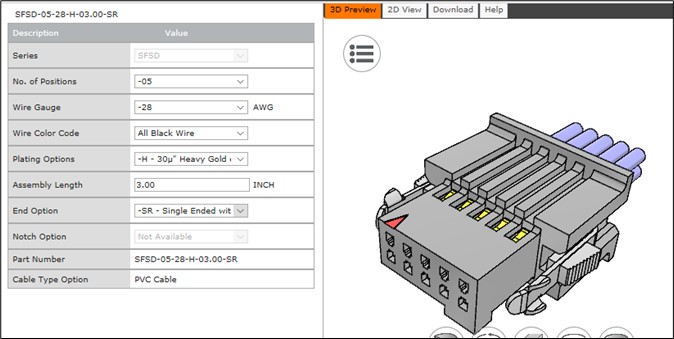

Samtec connector-cable assembly SFSD-05-28-H-03.00-SR w/retention clips “.050” Tiger Eye™ Double Row Discrete Wire Cable Assembly, Socket”
©
