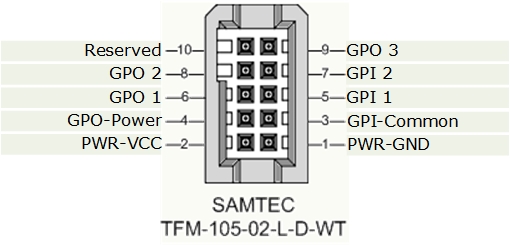

10-Pin IO Connector Pinout
|
Pin # |
Name |
Direction |
Definition |
|---|---|---|---|
|
1 |
PWR-GND |
- |
Camera Power - Ground |
|
2 |
PWR-VCC |
- |
Camera Power - DC +10 to +36 V |
|
3 |
GPI-Common |
- |
General I/O Common Ground |
|
4 |
GPO-Power |
- |
General Output Common Power |
|
5 |
GPI 1 |
In |
General External Input 1 |
|
6 |
GPO 1 |
Out |
General External Output 1 |
|
7 |
GPI 2 |
In |
General External Input 2 |
|
8 |
GPO 2 |
Out |
General External Output 2 |
|
9 |
GPO 3 |
Out |
General External Output 3 / Fast Switching Output |
|
10 |
Reserved |
|
Do not use. This differs from previous Genie Nano models. If you are upgrading, verify cable connections. |
©
