Status LED Indicator

The camera is equipped with one LED to display its operational status. When more than one condition is active, the LED color indicates the condition with the highest priority (such as – an acquisition in progress has more priority than a valid IP address assignment).

Once the connects to a network and an IP address is assigned, the Status LED will turn to steady blue. Only at this time will it be possible by the GigE Server or any application to communicate with the camera. The following table summarizes the LED states and corresponding camera status.

LED State	Description
No Light	No power to camera.
Solid Red	Initial state on power up before flashing. Remains solid only if there is a fatal error. Camera is not initialized. Wait less than a minute for the camera to reboot itself.
Flashing Red	Initialization sequence in progress.
Solid Red + Flashing Blue	Fatal Error. If the camera does not reboot itself, contact technical support.
Slow Flashing Blue	Ethernet cable disconnected. The camera continuously attempts to assign itself an IP address.
Fast Flashing Blue	File Access Feature is transferring data such as a firmware update, etc.
Solid Blue	IP address assigned; no application connected to the camera.
Solid Green	Application connected.
Flashing Green	Acquisition in progress. Flashing occurs on frame acquisition but does not exceed a rate of 100ms for faster frame rates.

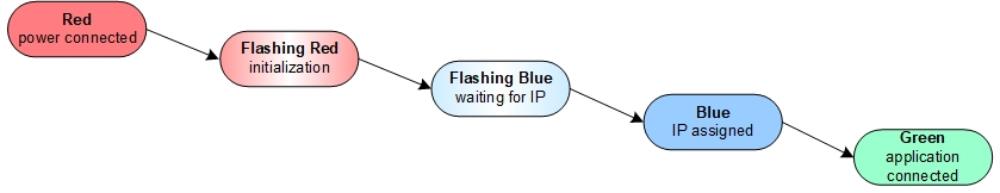

LED States on Power Up

The following LED sequence occurs when the Genie Nano 10G is powered up connected to a network.
